MCL8080+: The Ultimate Intel 8080 Emulator for ATTiny85

MicroCore Labs, , , , , ,

Introducing the MicroCore Labs MCL8080+

The MCL8080+ is an Intel 8080 emulator written in C which runs on the ATTiny85 microcontroller. Instead of the 40-pin package that Intel used the MCL8080+ local bus is implemented with a SPI serial bus with a number of optimizations!

The complete 8080 emulation and local bus are implemented in the ATTiny85 microcontroller and all of the system RAM, ROM, peripherals, and disk images are provided by a Teensy 4.0.  Some resistor voltage dividers are used to convert the ATTiny85’s 5V IO’s to 3.3V for the Teensy 4.0.

The ATTiny85 is a very resource-limited microcontroller which has only 512 bytes of RAM, 8K of ROM, five GPIOs plus minimal serial bus support. The MCL8080+ 8080 emulation code was developed to save enough space to allow for a small 128-byte direct-mapped cache that greatly improved the performance by reducing activity over the SPI bus where all of the program code and data resides.

Due to these optimizations the MCL8080+ boots CP/M just a hint slower than a genuine Altair 8800.

The MCL8080+ is written in simplified C using a lot of inline code and minimal calls and returns to reduce space and execution time. The emulator passed all 8080 opcode tests including ZEXALL:

The MCL8080+ local bus is implemented using a custom SPI bus which is optimized to improve efficiency and speed. All accesses are performed in burst cycles with auto-incrementing addresses until there is an address change. The SPI chip select was converted to a toggle to indicate that there was a new address on the bus which saves the MCL8080+ from having to toggle it at the end of SPI cycles.

The SPI slave controller is supported by a Teensy 4.0 which implements a bit-banged custom SPI controller and provides 64KB of RAM, the floppy ROM bootloader, a UART interface, a floppy controller, multiple BASIC, ROM, and floppy disk images including CP/M.

Running all system RAM, ROM and peripherals over a serial bus would normally make the system too slow to be practical. The MCL8080+ achieves a massive speed improvement by using a 128-byte direct-mapped cache which eliminates unnecessary SPI bus reads for code loops and frequently used code.

The MCL8080+ can run the original Altair 8080 BASIC famously written by Bill Gates and friends.

And when running the Altair floppy bootloader ROM the MCL8080+ can access two emulated floppy drives to run CP/M, MBASIC, and a number of applications and games.

The project source can be found on GitHub:

https://github.com/MicroCoreLabs/Projects/tree/master/MCL8080%2B

You can reach me at: mailto:eastwood90@hush.com

MCL8080+: The Ultimate Intel 8080 Emulator for ATTiny85

MCL68+ MOTOROLA 68000 EMULATOR – UPDATE

MicroCore Labs, , , , , , , , , ,

I would like to share an update for the MicroCore Labs MCL68+ project first introduced here: https://microcorelabs.com/2023/10/26/mcl68-motorola-68000-emulator-2/

I am happy to say that it is now able to completely boot and run the Macintosh 512K!

As a winter project I thought I would pick this project back up after a two year break and see if I could make some progress. When I left off the MCL68+ was able to almost boot to the MacOS desktop but would get a fatal error.

The breakthrough was to run the MCL68+ against Tom Harte’s 68000 opcode test suite which found a number of subtle errors which were resulting in the Mac experiencing the fatal error.

The reason I did not use Tom’s test suite two years ago was because they are all written in JSON format and I lacked the skills to translate it into vectors that my code could use. I STILL lack these skills but I was able to generate the conversion code using ChatGPT. I was impressed that between my prompt and the maturity of ChatGPT it was able to generate the correct code on the first pass!

Once I had the stream of opcode before and after results I was able to plug them into the MCL68+ and see where they diverged. The errors on the MCL68+ were mainly due to incorrect effective address handling when the address for the opcode source and destination was the same register. There were a few instances of incorrect flag calculations and stack ordering as well.

I believe there were over a million tests, so I am fairly confident at this point that the MCL68+ 68000 emulation code is now mostly correct – and cycle accurate to a large degree.

The Macintosh runs the CPU at almost 8 MHz and was a real challenge to get the Teensy 4.1 to bit-bang the local bus at that speed. I believe there are still signal integrity issues at the local bus interface so I chose to emulate the Mac’s 512K of RAM and the BIOS ROM inside of the Teensy to guarantee error-free operation. You may be able to see random dots around the screen which I believe are due to stray bus cycles writing to the video memory. These are harmless.

The updated source code is uploaded to GitHub: https://github.com/MicroCoreLabs/Projects/tree/master/MCL68%2B/code

Here is a short video demo of the MCL68+ running in a vintage Apple Macintosh 512K

You can reach me at: mailto:eastwood90@hush.com

MCL68+ MOTOROLA 68000 EMULATOR – UPDATE

World’s Fastest Commodore PET using the MCL65+ 6502 drop-in emulator

MicroCore Labs, , , , , , , ,

I recently acquired and restored a Commodore PET 4016, so I thought it might be fun to try replacing the CPU with an MCL65+ 6502 drop-in replacement board to see how it performs. I also was interested to see how much faster the PET can operate when running in some acceleration modes!

My PET 4016, which normally contains 16 KB of DRAM, was upgraded to 32 KB by a previous user. This motherboard had holes drilled in the second DRAM bank by Commodore to keep users from upgrading their 4016 machines to 32 KB in and to force them to buy a PET 4032. This user simple hand-soldered the drilled out connections and upgraded it anyway!

As soon as I installed the MCL65+ it was able to booting the PET and I was able to run a small BASIC program. It had no trouble replacing the 6502 in the computer.

This is the MCL65+ installed in the computer’s CPU socket – replacing the 6502.

The next step was to test a theory that I had – I wondered if a .PRG program file could be loaded and run directly from the PET’s memory without needing a disk drive. This turned out to be the case!

The first two bytes of a .PRG binary file contains the memory address to locate the program and the rest of the file is simple the stream of binary data for the program. I simple converted the .PRG files to a string of hex data, placed it in an array in the MCL65+ code, and loaded it when the user presses a key.

Once the program was loaded I just needed to type RUN in BASIC and the program started up!

Being able to replace the 6502 and run programs directly from the internal memory was interesting, but I though it would be even more amusing to try some acceleration modes of the MCL65+ to see how fast we can run a Commodore PET.

Here is a video demonstration of me running a few programs and diagnostics using a few acceleration modes:


The MCL65+ uses a Teensy 4.1 which contains 1 MB of memory so it can easily emulate all of the PET’s ROM and RAM. With just a few line of code it can emulate different PET ROM images and diagnostic ROMs, support different sizes of system memory, and can mirror these memories in a cycle accurate or accelerated manners.

The video shows the computer running three acceleration modes. Mode-1, Mode-2, and Mode-3.

Mode-1 is cycle accurate where the MCL65+ runs just like a stock 6502 and is cycle accurate for both reads and writes. Mode-2 is cycle accurate on writes but accelerated on reads. Mode-3 is accelerated on both reads and writes. The accelerated modes store all of the computer’s RAM and ROM inside of the MCL65+ internal memory and run it at the maximum speed of the Teensy which is 900 MHz and clock accuracy is not observed.

I believe this machine is now the World’s Fastest Commodore PET!

You can reach me at: mailto:eastwood90@hush.com

World’s Fastest Commodore PET using the MCL65+ 6502 drop-in emulator

MCLV20_Max – A Software-defined NEC V20 CPU And More

MicroCore Labs, , , ,

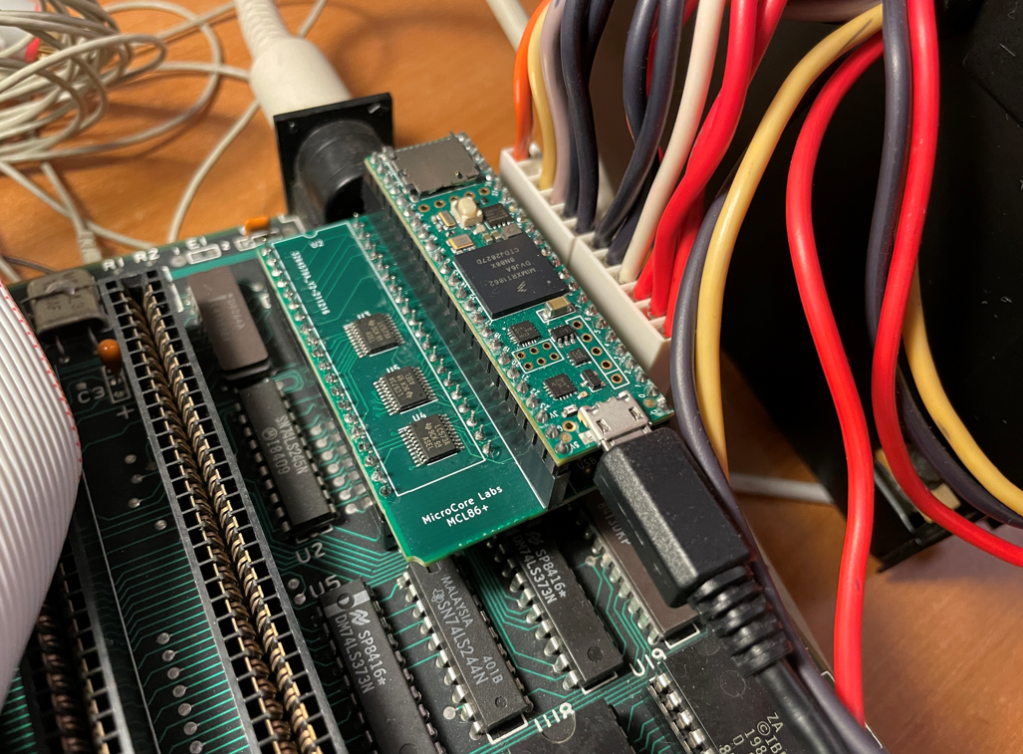

The MCLV20_Max is a Teensy 4.1-based software-defined drop-in CPU replacement for the Intel 8088 used in vintage IBM XT’s. It has enhancements built upon the MCL86+ project and uses the same PCB.

It emulates the full Intel 8088 instruction set as well as the additional 80188 and V20 opcodes. It also mimics the behavior of the V20 with its treatment of flags, shift-counts, and the ability to restart multiple prefixes upon exit of an interrupt. Below is the Anonymous BIOS which recognizes the MCLV20_Max as a V20 CPU.

In addition to the CPU emulation, some of the features of the XTMax project are integrated into the MCLV20_Max which include 4 MB of Expanded RAM and MicroSD hard drive support. Below are the drivers being loaded that configure the 4 MB of Expanded RAM and enumerate the MicroSD as drive D:

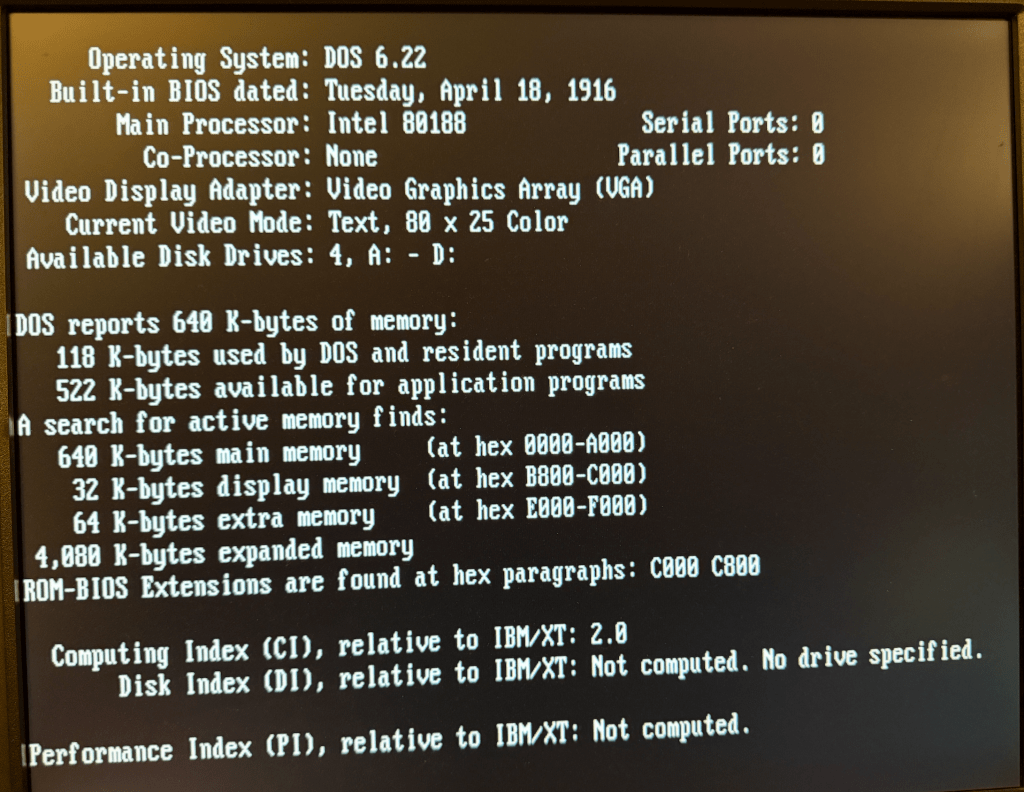

Two acceleration modes are provided. Acceleration mode 1 simply removes opcode clock cycle accuracy so that one opcode is executed for each clock. This can provide for as much as 100% speed improvement over the stock 4.77 Mhz 8088.

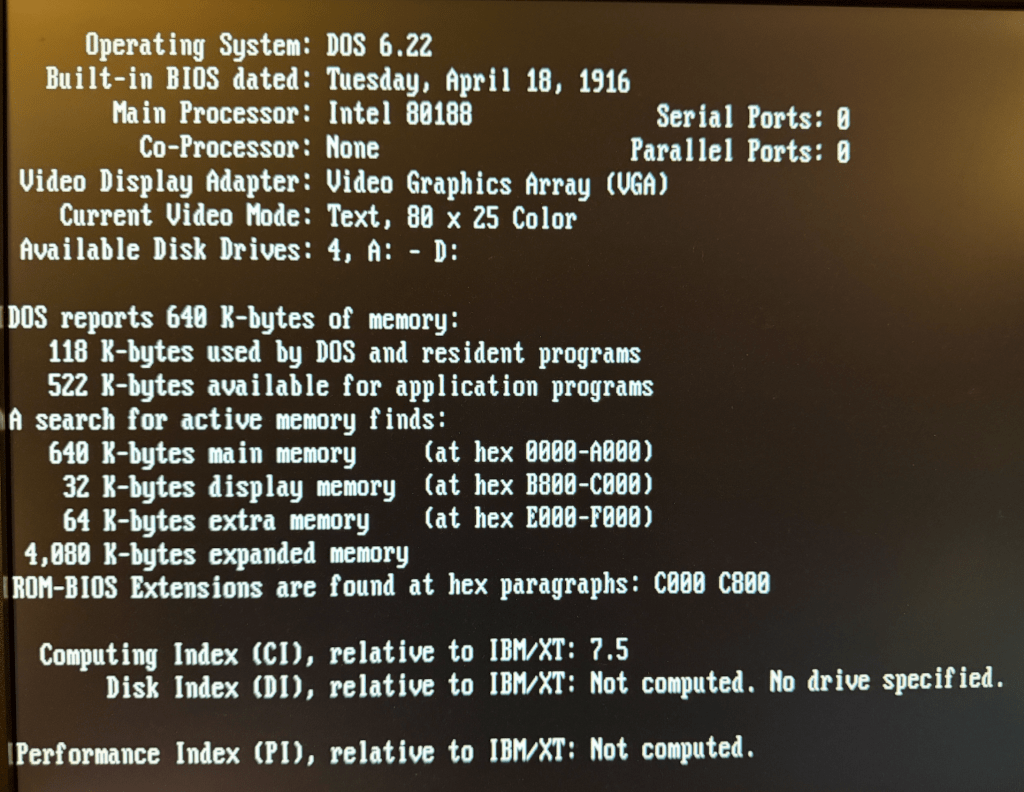

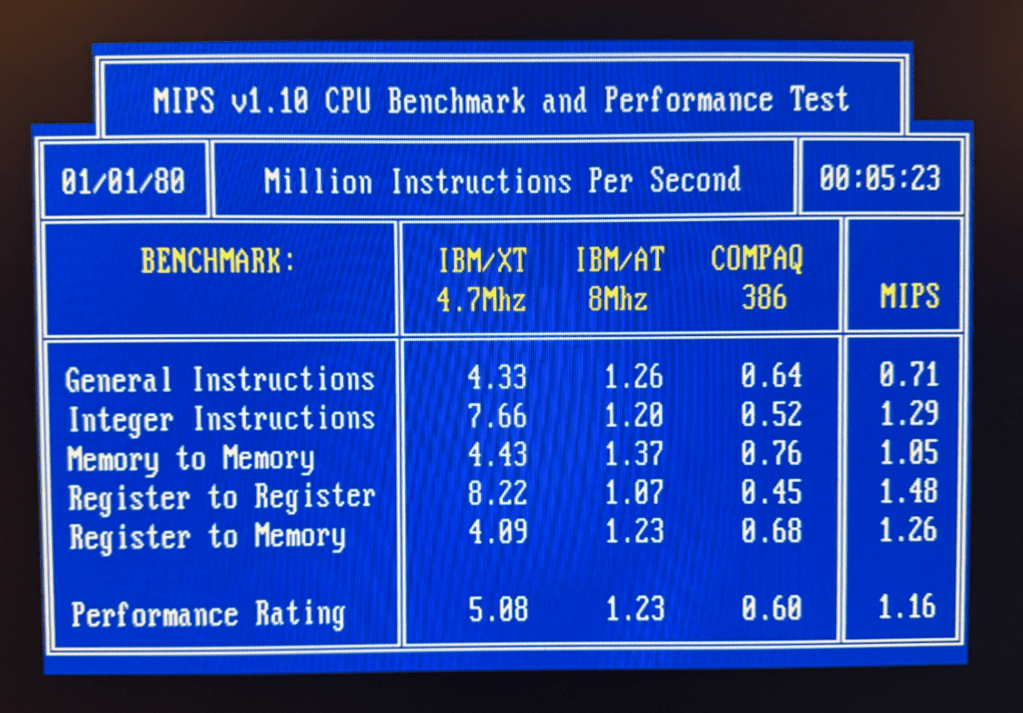

Acceleration mode 2 provides the maximum acceleration which can be from 5 to 10X faster than the 8088. It does this by first copying all 640 KB of the motherboard RAM plus the ROM into the Teensy’s internal memory which runs at 800 Mhz+. From then on all CPU accesses to instruction and data are handled using this fast mirror RAM with only CPU accesses to motherboard peripherals and video RAM using the CPU’s local bus. The resulting speed is faster than a 10 Mhz 80286 and approaching that of a 80386.

The MCLV20_Max also has enough internal memory to host any BIOS or diagnostic ROM.

Using a modified LoTech EMM 3.2 driver, MCLV20_Max can provide 4 MB of Expanded RAM which can be used as a fast RAMDISK and like the XTMax project, the MCLV20_Max can also provide access to a MicroSD card which is formatted as FAT16 and can be freely used by any other computer including Windows, Mac, Linux, and Chromebook.

I made a few video demonstrations of the MCLV20_Max and posted to YouTube:

All of the source code and PCB files are open source and posted on GitHub:

https://github.com/MicroCoreLabs/Projects/tree/master/MCLV20_Max

MCLV20_Max – A Software-defined NEC V20 CPU And More

XTMax – 8-bit Software-Defined ISA card using Teensy 4.1

MicroCore Labs, , , , , , , , ,

XTMax is a software-defined 8-bit ISA card which uses a Teesny 4.1 microcontroller board that provides the functionality of THREE vintage ISA cards. It can expand “conventional” motherboard RAM up to 640 KB, adds up to 16 MB of Expanded RAM, supports 320 KB of UMB RAM, and provides bootable hard-drive access using a MicroSD card. A small PCB is used to allow nearly all of the ISA bus signals to attach to the Teensy 4.1.

A similar project to this is the PicoMem which is also a software-defined ISA expansion card, however the Teensy 4.1 used on the XTMax is nearly 3X faster than the Raspberry Pi Pico so does not share some of its limitations.

The first feature of XTMax is that it can expand the motherboard’s conventional (motherboard) ram up to 640 KB without limitation and with zero wait states. XTMax also has no limitation on the ability to support DMA to and from the computer’s floppy or spinning hard disks as PicoMem does.

XTMax can currently support 16 MB of Expanded RAM and 320 KB of UMB using a updated drivers.

XTmax also allows a MicroSD card to be accessed as a hard drive which is similar to the functionality of an XT-IDE card. By default it will be the boot device if there is no hard drive present.

All design files are open souce and posted to GitHub:

https://github.com/MicroCoreLabs/Projects/tree/master/XTMax

Here is the PCB developed using KiCAD:

And here is the actual board with a Teensy 4.1 attached:

Here is XTMax installed in a very early IBM 5150 rev-A which has 64 KB installed on the motherboard.

It shows that 4 MB of Expanded RAM was added and that the MicroSD card is accessible as the C: drive. The older IBM PC’s did not display the total amount of conventional memory, but in this application below the memory is expanded to the maximum of 640 KB.

It is worth noting that the first BIOS version of the IBM PC did not support extension ROMs and therefore do not support hard disks, so XTMax is currently the only way to have a hard disk equivalent on these machines!

Here is the total memory on this early PC as reported by Norton Utilities:

Here is a screen capture of the XTMax providing 16 MB of Expanded RAM and loads the UMB driver plus configures a 15 MB RAMDISK!

I posted a video on YouTube of the XTMax in action:
